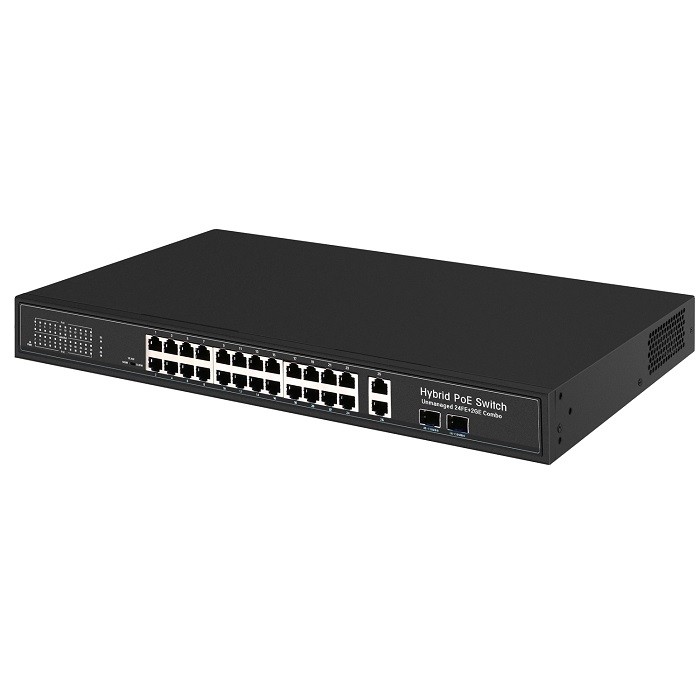

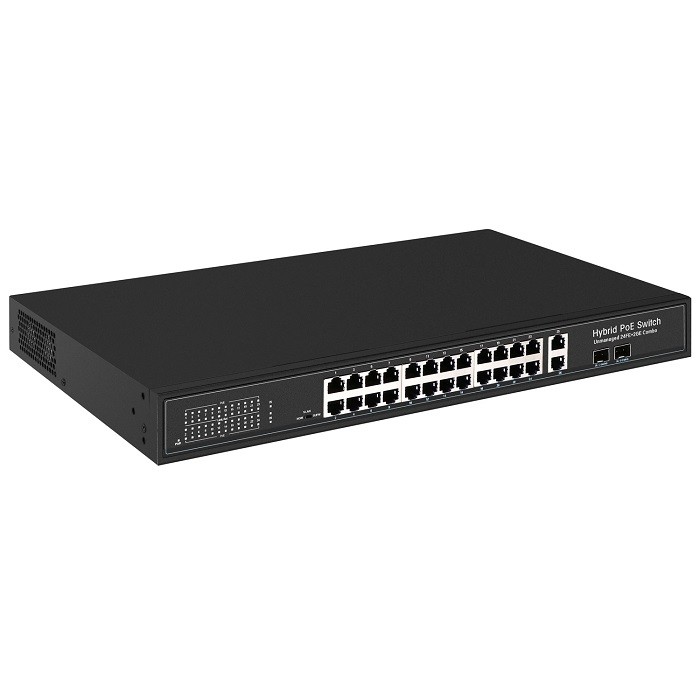

Ultra Long Distance Poe Max 800 Meter 24 Ports Fast Network Switch

Items:Gigabit uplink 24-port 100Mbps ultra long-distance Poe switch
Supporting instructions:LD long-distance port should work with LD PoE switches or LD extender

EMAIL



Fixed Port

8*10/100Base-TX LD PoE port(Data/Power)(17-24)
16*10/100Base-TX  PoE port(Data/Power)(1-16)
1*10/100/1000Base-TX uplink RJ45 port (Data)
1*10/100/1000Base-TX/1000M SFP uplink COMBO port (Data)
PoE Ports1-2 port supports IEEE802.3af/at/poe++/bt max 90w
3-24Ports support IEEE802.3af/at




PoE distance

1-2 Port:
100Mbps:the max distance is 100m and the max output power is 90W
3-16 ports:
100Mbps, the max distance is 150m and the max output power is 30W
10Mbps, the max distance is 250m and the max output power is 20W
LD ports(17-24 ):
Under LD-N 100M mode, the max distance is 500m and the max output power is 15W
Under LD-S 10M mode, the max distance is 800m and the max output power is 6W
PoE out Pin1-8ports: 1245+ 3678-
9-24ports:12+ 36-



Function

LD-N:(Standard normal)
V:(Port isolation)
LD-S:(Super mode)(specific port refers to user manual)
1, LD-N_ Standard mode + V_ Port isolation + LD-S_ Ultra far mode
The POE log function can monitor the working condition of PD terminal equipment in real time, and automatically restart the port when it is found dead or no response, so as to restore normal power supply



Network Protocol

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3x
IEEE 802.3af/at/POE++BT
Port Specification10/100/1000BaseT(X)Auto
Transmission  ModeStore and Forward(full wirespeed)
Bandwidth20Gbps
Packet Forwarding6.33Mpps
MAC Address8K
Buffer4M



Transmission Distance

10BASE-T : Cat3,4,5 UTP(≤250 meter)
100BASE-TX : Cat5 or later UTP(150 meter)
1000BASE-TX : Cat6 or later UTP(150 meter)
LD 100BASE-TX : Cat6 or later UTP(500 meter)
LD 10BASE-TX : Cat6 or later UTP(800 meter)
Power PinDefault 1/2(+),3/6(-); Optional order 4/5(+),7/8(-)
Total power/Input voltageMAX 300W (AC100-240V 50/60HZ)

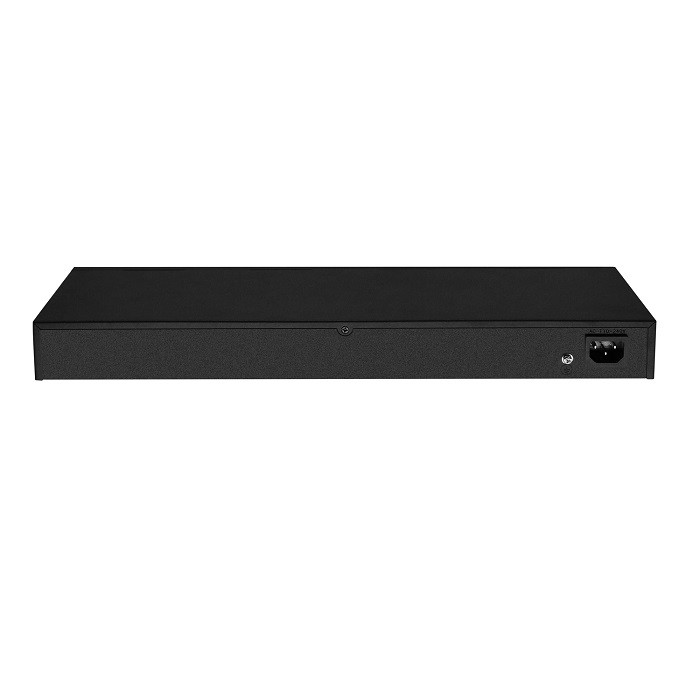

Power InputBuilt-in power AC:100~240V 50-60Hz 4A
WattStandby Power Consumption:≤12W



LED Indicator

POWER:Power LED(over-power LED)
POWER FLASH: LED(Poe Dog running)
Uplink:(Link LED=10/100M Link,1000M=Gigabit Link)
Port:(Orange=PoE LED+Green=Link LED)
Super:(Super mode LED)
Vlan:(Port isolation LED)
Operating Temperature/Humidity-10~+65°C;5%~90% RH Non coagulation
Storage Temperature/Humidity-40~+75°C;5%~95% RH Non coagulation
Product size/
Package size
440mm*220mm*45mm (L*W*H)
515mm*375mm*95mm (L*W*H)
N.W/G.W(kg)2.8kg/3.6kg
InstallationDesktop (optional wall+machine hanger parts)
Lightning protection level3KV 8/20usIP30
CertificateCE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;RoHS;
WarrantyWhole device for 1 year(Accessories not included)
