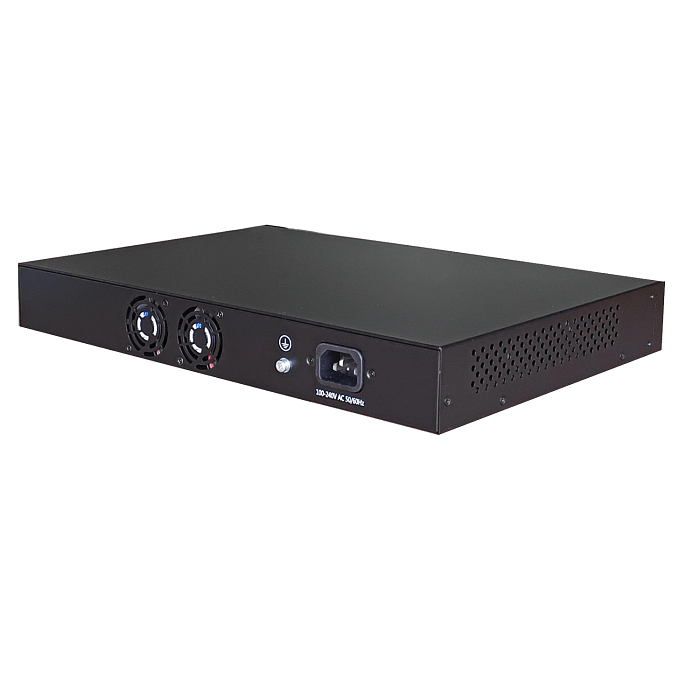

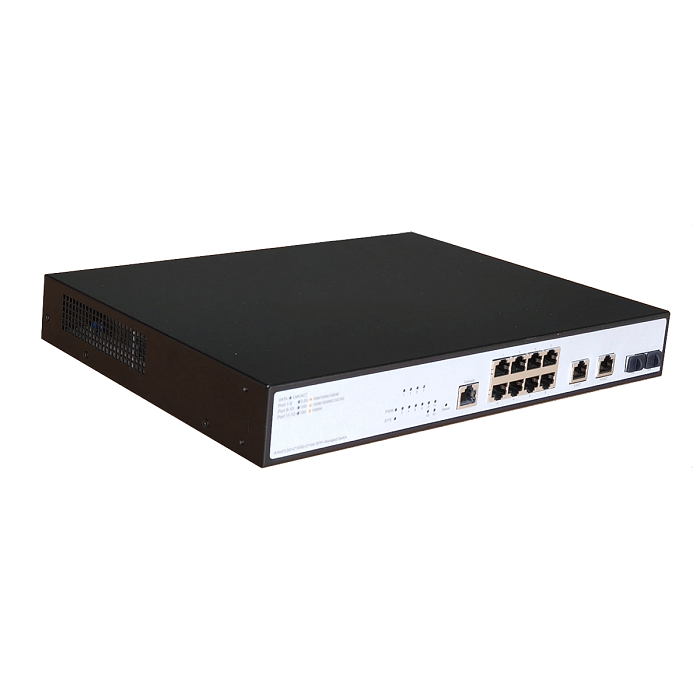

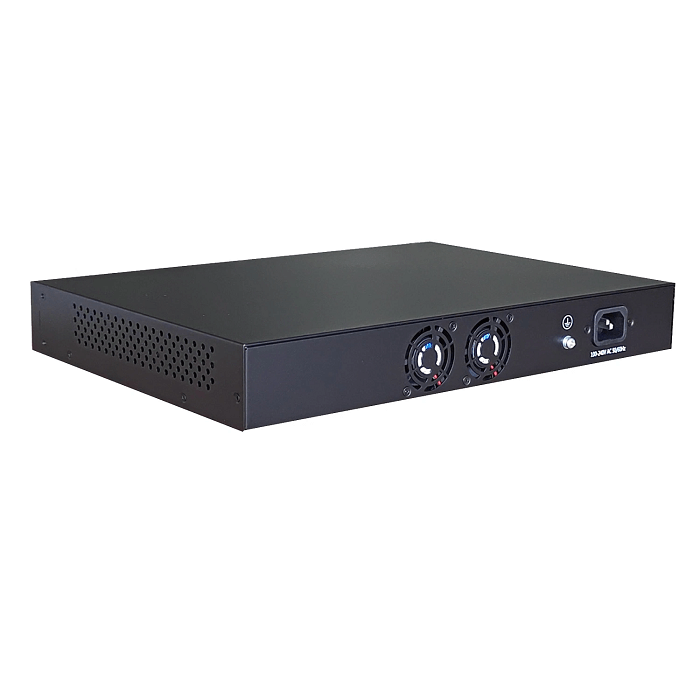

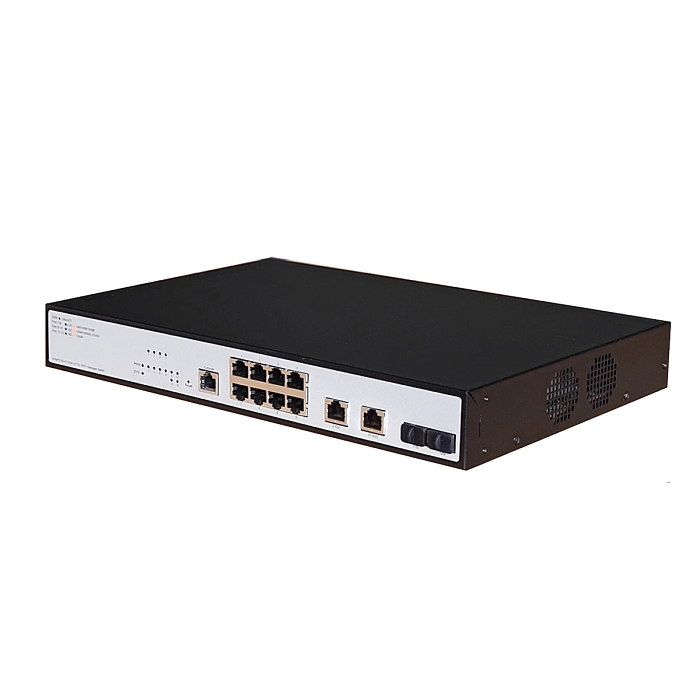

L3 8 Ports 2.5g Switch with 2*10gbe Tx+2*10g SFP+ 10g Network Switch

OVERVIEW:
The provides 8* 2.5Gbps adaptive RJ45 ports, uplinked to 2* 10Gbps RJ45 ports and 2* 10Gbps SFP+ fiber module expansion slots and 1* Console port. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. It provides complete security policy, perfect QoS policy and rich VLAN function, which is easy to manage and maintain to meet the networking and access requirements of Enterprise, Community, Hotel, Office Network and Campus Network.

EMAIL



Interface

8*10M/100M/1000M/2.5Gbps RJ45 Ports
2*100M/1000M/2.5G/5G/10Gbps Ports
2*1000M/2.5G/10Gbps SFP+ Slots
1 Console Port
StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE 802.3ad, IEEE802.3bz, IEEE802.3ae, IEEE802.3an, IEEE802.1X, IEEE802.1Q, IEEE802.1p, IEEE802.1d, IEEE802.1w





Network Media

10BASE-T: UTP category 3,4,5 cable(≤100m)
100BASE-TX: UTP category 5, 5e cable(≤100m)
1000BASE-TX: UTP category 5e, 6 cable(≤100m)
2.5GBASE-TX: UTP category 6,6A cable(≤100m)
10GBASE-TX: UTP category 6A, 7 cable(≤100m)
1000BASE-X: MMF, SMF
10GBASE-X: MMF, SMF
10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m)
10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m)
IndicatorPWR (Green), LNK/ACT (Green/ Orange), SYS (Green)
MAC Address Table16K, Auto-learning, Auto-updating
Jumbo Frame12KByte
Packet Buffer12Mbit
Transfer ModeStore-and-forward
Switching Capacity120Gbps
Packet Forward Speed89.28Mpps
Power Supply12V/3A Built-in power supply
Input Power SupplyAC:100-240V, 50/60Hz,2A Max
Dimensions(L*W*H)330*230*44mm, Black
Operating Temperature0°C ~ 40°C
Storage Temperature-40°C ~ 70°C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Surge ProtectionDifferential mode ±2KV ,Common mode ±4KV
Electrostatic StandardContact ±6KV, Air ±8KV
MTBF>100000 hours
