Product Overview:

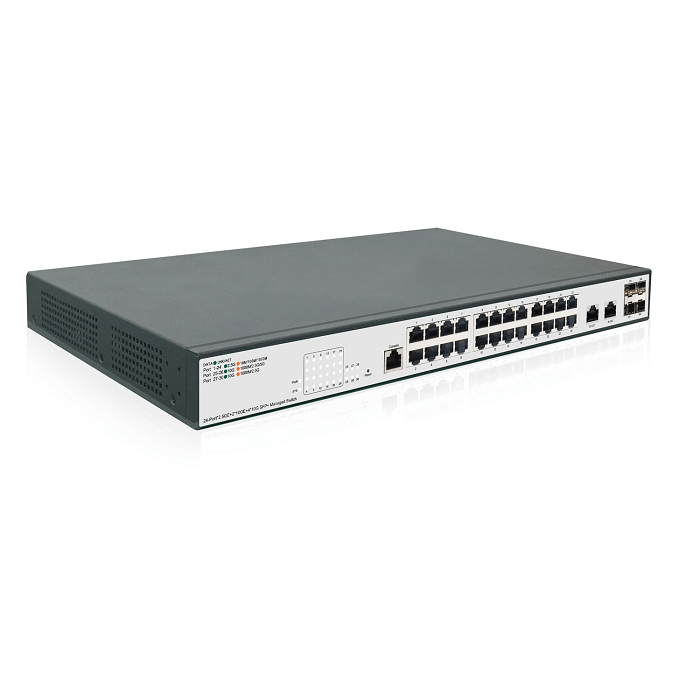

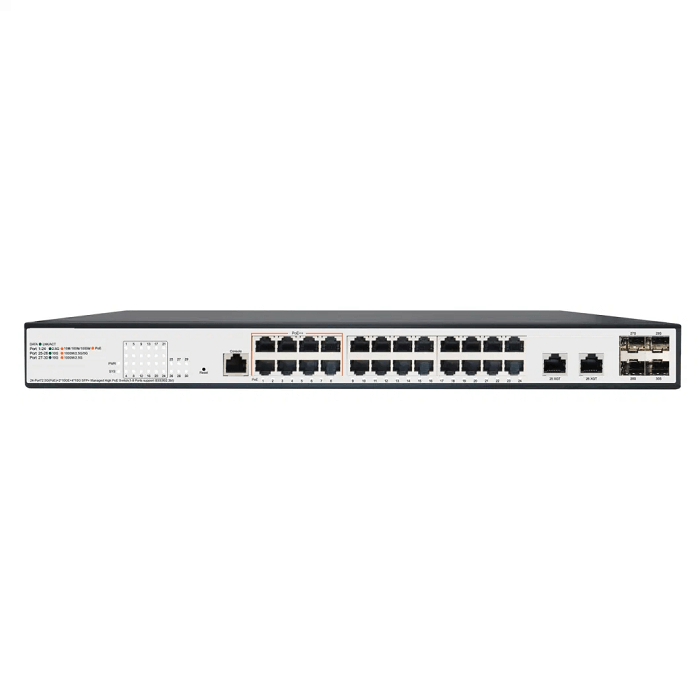

A Layer 3 Managed network Switch with 24*10M/100M/1000M/2.5Gbps adaptive RJ45 ports, 2*10Gbps RJ45 ports and 4*10Gbps SFP+ fiber module expansion slots and a Console port. 1-24 ports have PoE power supply function, of which ports 1-8 support IEEE802.3bt standard, the maximum output of a single port can reach 90W, and ports 9-24 support IEEE802.3af/at standard, the maximum output of a single port can reach 30W, which can be used as Power over Ethernet device and can automatically detect and identify the powered devices that meet the standard and supply power to them through the network cable. Adopting store-and-forward technology, combined with dynamic memory allocation, ensures bandwidth is efficiently allocated to each port. Powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras, ideal for WIFI Coverage, Internet Cafes, Server Rooms, Etc.
Product Features:
Support for IEEE802.3af/at/bt standards;
Panel lights monitor operating status and assist in failure analysis;
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
2.5G electrical port backward compatible with 10M/100M/1000Mbps transmission rate;
10G electrical port backward compatible with 100M/1000M/2.5G/5Gbps transmission rate; 1
0G optical port is backward compatible with 1000M/2.5Gbps transmission rate;
10G SFP+ 10 Gigabit optical modules are required, supporting SR/LR/LRM/ER/ZR and other models;
Layer 3 routing protocol control, adaptable to multiple services, efficient and secure information transmission;
Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup;
Flexible and convenient management and maintenance support Console, Telnet, SSH and other management methods;
Support WEB way management, more simple and efficient, easy to install and debug engineering and maintenance personnel;
Support PD-ALIVE function;
Support HTTP/TFTP/FTP file upload and download management.
Interface | 24*10M/100M/1000M/2.5Gbps RJ45 Ports 2*100M/1000M/2.5G/5G/10Gbps RJ45 Ports 4*1000M/2.5G/10Gbps SFP+ Slots 1*Console |
Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3bz, IEEE802.3ae, IEEE802.3ad, IEEE802.3an, IEEE802.1X, IEEE802.1Q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
Network Media | 10BASE-TX: UTP category 3, 4, 5 cable(≤100m) 100BASE-TX: UTP category 5, 5e cable(≤100m) 1000BASE-TX: UTP category 5e, 6 cable(≤100m) 2.5GBASE-TX: UTP category6, 6A cable(≤100m) 10GBASE-TX: UTP category 6A, 7 cable(≤100m) 1000BASE-X: MMF, SMF 10GBASE-X: MMF, SMF 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m) |
Indicator | PWR(Green), LNK/ACT(Green/Orange), SYS(Green), PoE(Orange) |
MAC Address Table | 32K, Auto-learning, Auto-updating |
Jumbo Frame | 12KBytes |
Packet Buffer | 16Mbit |
Transfer Mode | Store-and-forward |
Packet Forward Speed | 178.56Mpps |
Switching Capacity | 240Gbps |
Input Power Supply | Port 1-24(1-8 ports support IEEE802.3bt standard, 9-24 ports support IEEE802.3af/at standard) |
PoE Power On RJ45 | 1/2(-), 3/6(+) and 4/5(+), 7/8(-) |
PoE Output | 1-8 ports 90W(Max); 9-24 ports 30W(Max) |
PoE Power Budget | 370W |
Power Supply | 438W Built-in power supply |
Input Voltage | AC:100-240V, 50/60Hz, 8A Max |
Dimensions(L*W*H) | 440*260*44mm, Black |
Operating Temperature | 0°C ~ 40°C |
Storage Temperature | -40°C ~ 70°C |
Operating Humidity | 10% ~ 90% non-condensing |
Storage Humidity | 5% ~ 90% non-condensing |
Surge Protection | Differential mode ±2KV , Common mode ±4KV |
Electrostatic Standard | Contact ±6KV, Air ±8KV |
MTBF | >100000 hours |
Packaging Accessories | AC power cord *1 Feet *4 Rack Mount Kit *2 Screw *8 User Manual *1 |
PoE Management | ON/OFF Config Alive Checking for PD 7/24 On/Off Scheduling |
