Single Port 100m Ultra Long Distance Poe Extender Max 500 Meter Transmission

Item:Single port 100M ultra long distance PoE extender
Supporting instructions: LD long-distance ports need to be used with LD PoE switches or in pairs

EMAIL

Fixed port

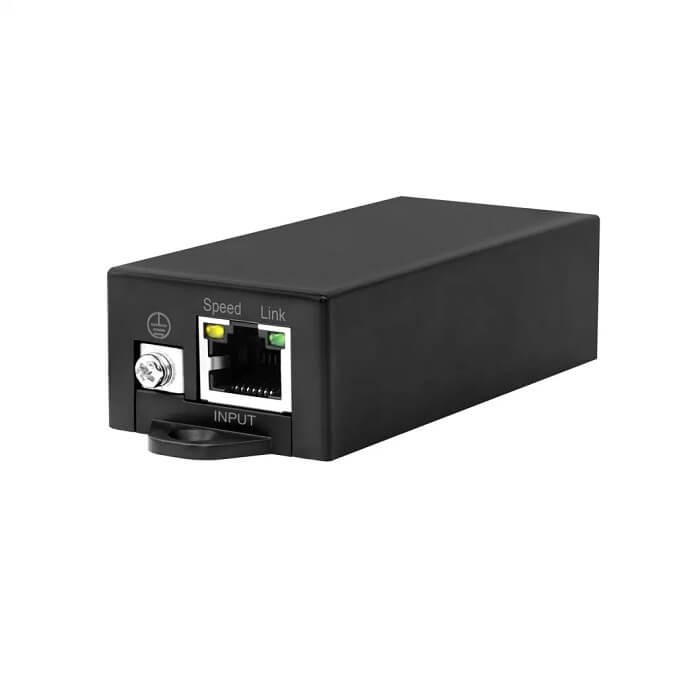

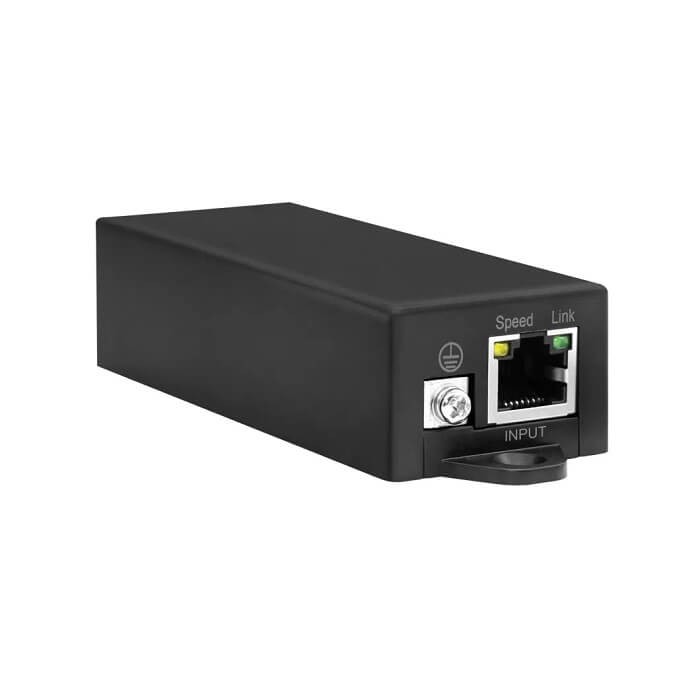

1*10 / 100M RJ45 Poe power input port
1*10 / 100M RJ45 LD Poe power output ports
Poe In portSupport IEEE802.3af/at   Poe in MAX 30W; (optional Poe + + / BT,MAX65W)
Support 40-57v passive Poe in
PoE Pin1245+ 3678-



Poe extender distance

Poe in+ Poe out(30W input as example)
Normal 100M type, max distance 150+150 meters, max power out 16W
Normal 10M type, max distance 250+250 meters, max power out 13W
LD 100M type, max distance 150+500 meters, max power out 12W
LD 10M type, max distance 250+800 meters, max power out 6W


Supporting power supply

1: No power adapter in default
2: Optional 12V 0.5A power as network extender
3: Optional 52V 0.6A power can be used as a single port Poe switch
WattStandby Power Consumption:≤0.5W
DC inputAs Network Extender: DC12V MAX 0.5A
As PoE Network Extender :DC37-57V MAX 0.6A

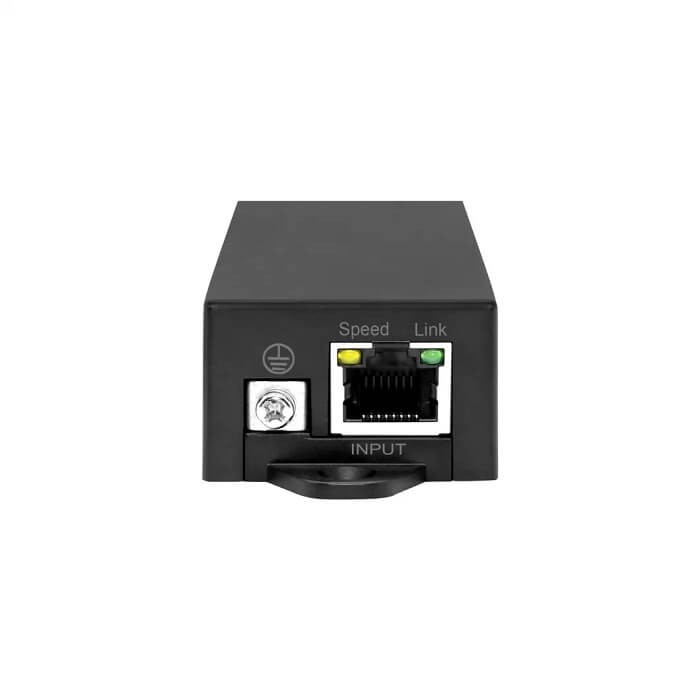

LED IndicatorLlink: Lan network linked
Speed: lan speed 100M


Network Protocol

Supports IEEE 802.3az-2010 (EEE)
100Base-TX IEEE 802.3u Compliant
10Base-T IEEE 802.3 Compliant
IEEE 802.3AF/AT
Transmission ModeDirect forwarding (full wirespeed)
Operating Temperature/Humidity-10~+55°C;5%~90% RH Non coagulation
Storage Temperature/Humidity-40~+75°C;5%~95% RH Non coagulation
Product size(L*W*H)112mm*41mm*26mm
N.WIG.W(kg)0.15kg(1 pairs)

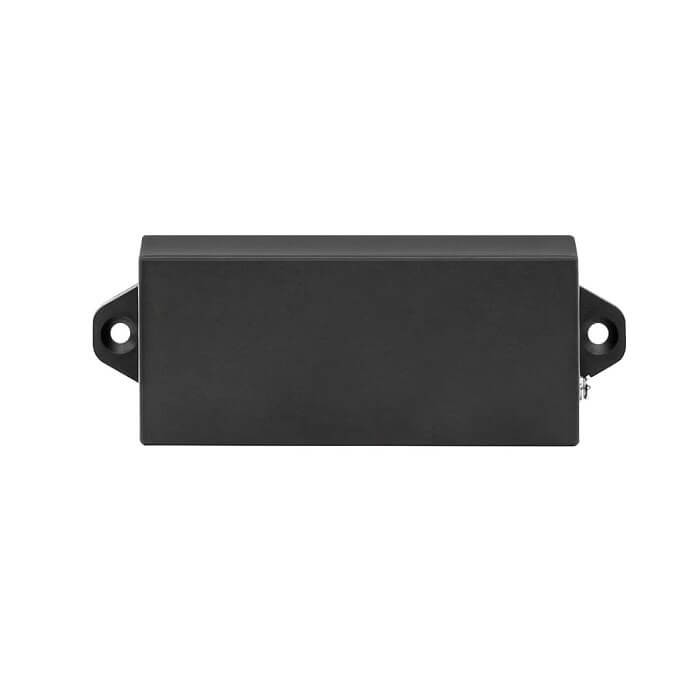

InstallationDesktop, wall mounted
Lightning protection level3KV 8/20usIP30
CertificateCE mark, commercial;CE/LVD EN60950FCC Part 15 Class B;RoHS;
WarrantyWhole device for 1 year(Accessories not included)
