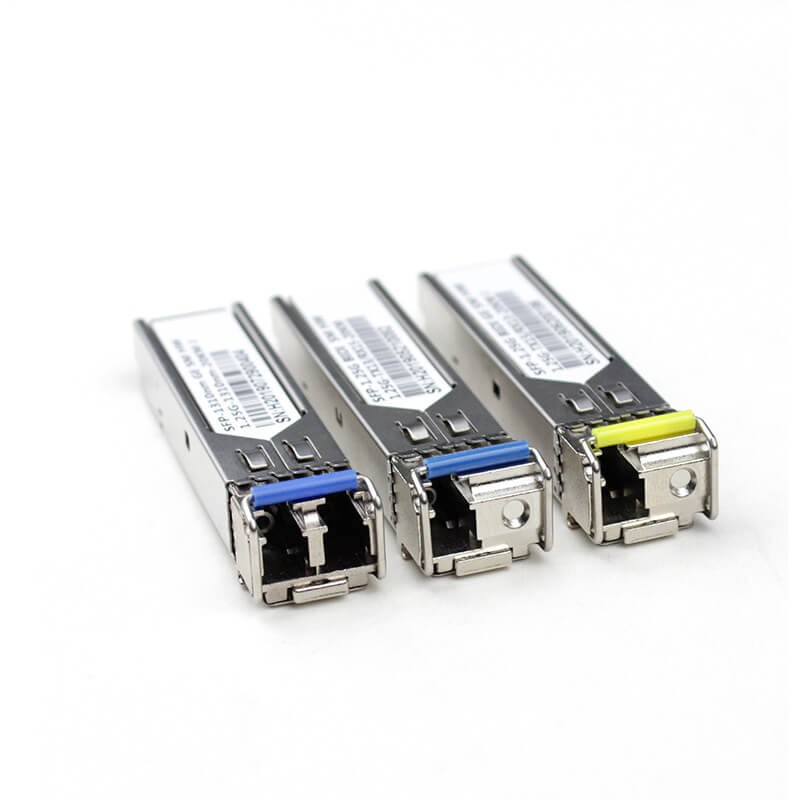

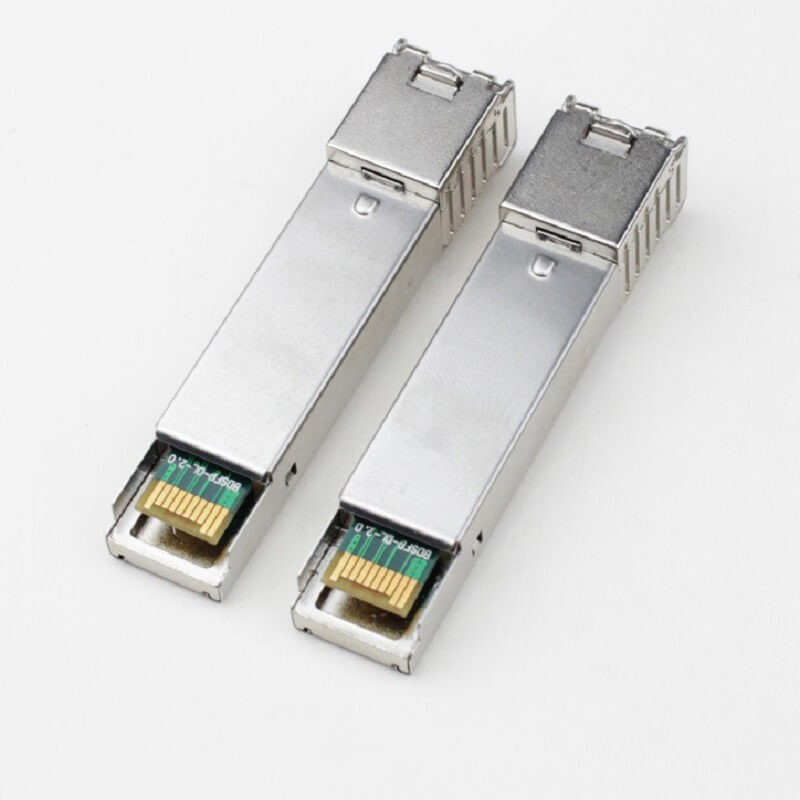

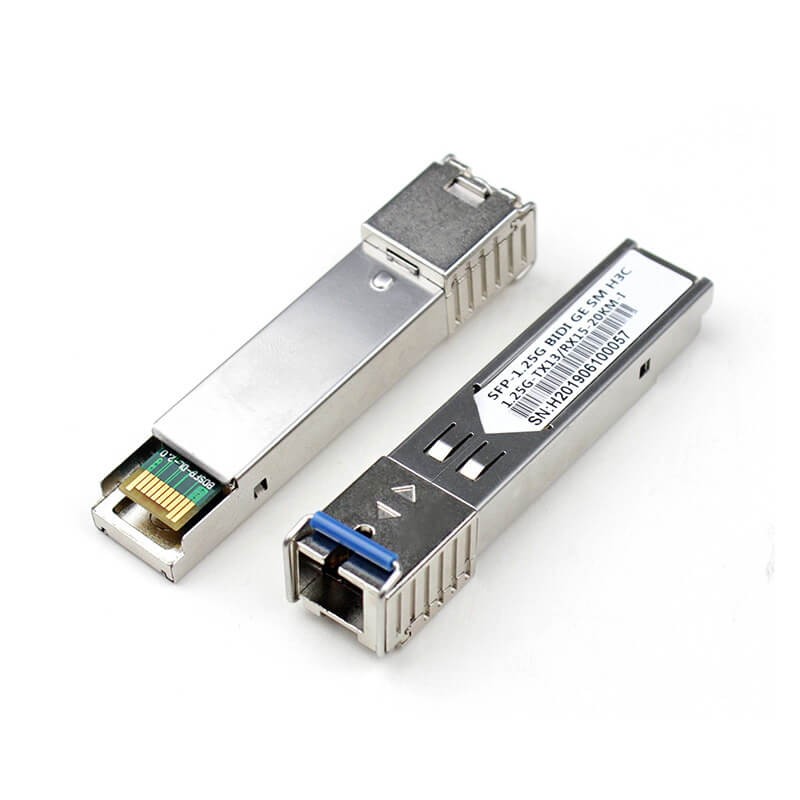

Product type: SFP optical module
Product wavelength: 1310nm /1550nm
Interface type: LC interface
Rate: 1.25G/s
Transmission distance: 20 kilometers
Optical power: -9~-5dBm
Receiving sensitivity: >-19dBm
Allowable attenuation value: 10dB
Working voltage: 3.3V
Working temperature: -30C~70°C
Compatible with Huawei series switches and other equipment
Compatible with H3C series switches and other equipment
Compatible with Cisco series switches and other equipment
Compatible with Juniper series switches and other equipment
Compatible with Extreme series switches and other equipment
Compatible with Alcatel series switches and other equipment
Compatible with Brocode series switches and devices
Compatible with HP series switches and other equipment
Note: Due to the continuous upgrading of switches, routers and other products, there may be compatibility issues between fiber optic modules and some switches. In order that the optical module you purchased can be compatible with the switch and used normally, please contact customer service before purchasing and explain the brand and model of switch the module you purchased is used on. (or leave a message to explain).
SFP OPTICAL MODULE TROUBLESHOOTING:
1. Confirm whether the optical fiber jumper matches the optical fiber module. The common colors of multi-mode fiber jumpers are orange, gray, and turquoise. Such fiber jumpers have the words 62.5/125U and 50/125U printed on them. Single-mode optical fiber patch cords usually come in yellow, blue, etc., with words such as 652D, 9/125U etc. printed on the line. Optical fiber modules are mostly represented by black pull rings as multi-mode (850NM wavelength), and other colors are represented as single-mode optical modules.
2. Closed inspection. The single-mode optical module uses invisible light. We can use a jumper to connect the transmitting port and receiving port of the optical module, which is called self-loop. If the working status light of the switch is on, it means it is working normally.
