10G industrial switch 4 UTP/8 UTP with POE 3-layer management optical fiber ring network switch

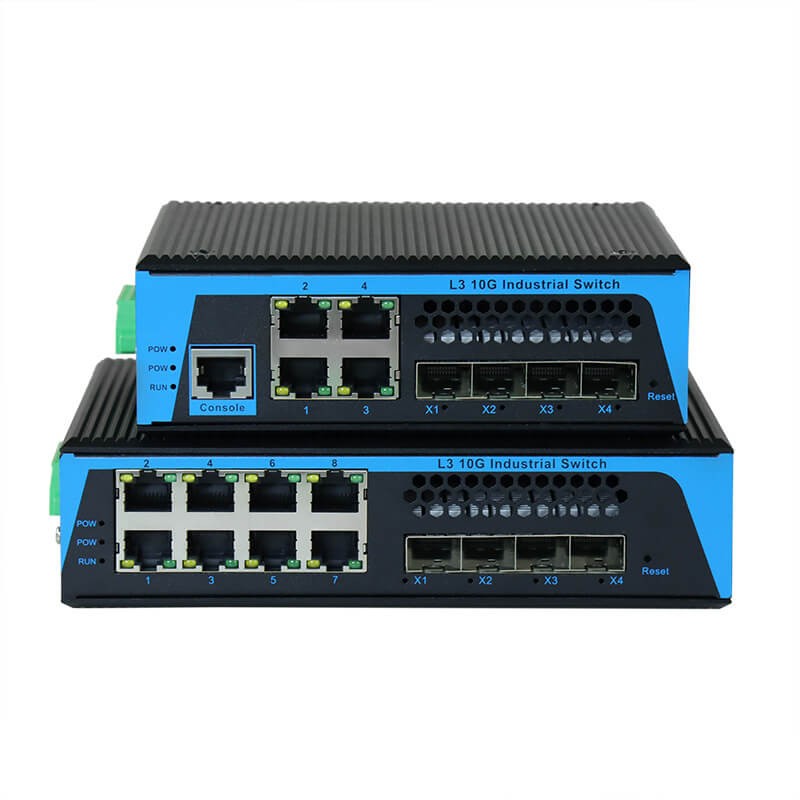

Product ports: 4 Gigabit electrical ports + 4 10 Gigabit optical ports
Management port: 1 console port
Reset button: 1 restore factory settings button
Switching capacity: 1.2Tbps
Packet forwarding rate: 406MppS
MAC address: supports 32K MAC address table; supports automatic update and two-way learning.
Working temperature:-40~85°C
Storage temperature:-40~85°C
Working humidity: 10%~90% without condensation
Storage humidity: 5%~95% without condensation

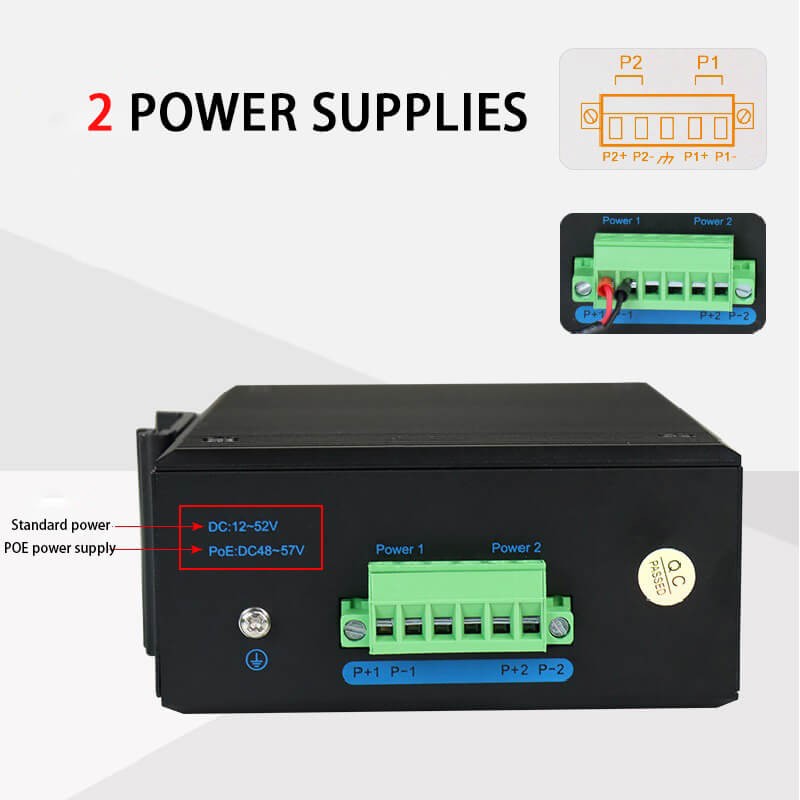

Input voltage: DC12-52V, POE: DC48-57V, supports dual power supply redundancy, supports built-in overcurrent 4.0A protection, and supports reverse connection protection
Appearance size: 143 x125 x48mm (length x width x height)
Machine weight:<0.6Kg
Machine power consumption: <15W

System maintenance: supports configuration file upload/download; supports upgrade package upload; supports WEB restore to factory configuration; supports system log function; supports Ping detection, tracert detection network cable detection; supports WEB interface management (supports http and https protocols); supports CLI interface Management, supports Telnet remote management, supports SSH 2.0; supports SNMP network management; supports RMON; supports LLDP.

VLAN:
Supports a maximum of 4096 VLANs; supports 802.10 standard VLANs; supports QinQ; supports Voice VLAN, MAC VLANIP VLAN.

Storm Suppression:
Supports suppression of broadcast, multicast, unicast, etc.

Spanning tree:
Supports STP Spanning Tree Protocol; supports RSTP Rapid Spanning Tree Protocol; supports MSTP Multiple Spanning Tree Protocol.

Supported protocol standards:
IEEE 802.3ad, link aggregation protocol; IEEE 802.3, 10BASE-T Ethernet; IEEE 802.3u, Fast Ethernet standard; IEEE 802.3ab, Gigabit Ethernet standard; IEEE 802.3z, Gigabit Ethernet optical fiber standard; IEEE 802.3 ae, 10G Ethernet standard; IEEE 802.3x, full-duplex Ethernet data
Link layer flow control; IEEE 802.3az, EEE energy-efficient Ethernet standard.

Port aggregation: supports static aggregation and dynamic aggregation.

Port Mirroring: Supports many-to-one port mirroring, with no limit on the number of mirroring source ports.

Loop protection: supports loop detection/loop avoidance.

Ring network protocol: Supports industrial-grade ring network protocol ERPS.

Port flow control: supports half-duplex based on back pressure control.

Port speed limit: supports full duplex based on PAUSE frame.

IP routing: supports port-based input/output bandwidth management; supports static routing; supports dynamic routing RIP, RIPng, OSFP, OSPFv3; supports VRRP (Virtual Routing Protocol).

Q0s: SP (StrictPriorty), strict priority rotation algorithm; WFQ (Weighted Fair Queuing) weighted fair queuing; WRR (Weighted Round Robin), weighted priority rotation algorithm; Head Of Line, congestion prevention mechanism; Best-Effort Service, best effort And for the service First come firstserved, first come first served algorithm; 802.1p port queue priority algorithm

EMAIL

Interface specifications: 4 Gigabit optical ports + 4 or 8 Gigabit electrical ports

Wide temperature operation: -40℃~85℃ ultra-wide operating temperature range

Wide voltage operation: DC12-52V (PoE model is DC48-57V)

Network redundancy: supports STP/RSTP/MSTP, supports ERPS (self-healing time <20ms)

Multicast management: support IGMPSnooping/MLDSnooping

VLAN: Supports 802.10 VLAN, QinO, Voice VLAN, MAC VLAN, IP VLAN Link aggregation: Supports static/dynamic link aggregation, providing perfect bandwidth utilization

Clock synchronization: supports PTP protocol

Security management: supports ACL access control list, supports 802.1X

Management functions: Supports multiple management methods such as WEB, CLI, SNMP, etc.

Monitoring and maintenance: supports port mirroring, interface status monitoring, log management


Powerful processing capabilities,:

The 10 Gigabit switch is based on the powerful and stable processing capabilities of VCore-Il MIPS-based CPU.


Complete security control strategy:

Supports port-based user IP+MAC address authentication and port-based 802.1X authentication;

Supports ACL functions based on Layer 3 and Layer 4 to effectively defend against ARP attacks and viruses;

Supports complete storm control functions, which can suppress broadcast, multicast, and unicast storms;

Supports unique ARP intrusion detection function, which can effectively prevent hackers or attackers from carrying out increasingly popular "ARP spoofing attacks" through ARP messages;

Supports the IP Source GuaT6 feature to prevent illegal address spoofing including MAC spoofing, IP spoofing, MAC/IP spoofing, and DoS attacks caused by high-traffic address spoofing;

Provides DHCP Snooping (listening) function. By establishing and maintaining the DHCPS snooping binding table, it can snoop the MAC address, IP address, lease period and other information of access users, solving the problem of IP and port tracking and positioning of DHCP users.


Complete reliability protection mechanism:

Convenient management and maintenance The TX8-4GFS4T-SFP-R switch uses the CPU protection policy to classify and limit the flow rate of packets sent to the CPU to avoid illegal attack packets from attacking the CPU and consuming resources;

Supports multiple spanning tree protocols such as STP, RSTP, MSTP, etc., quickly converges, improves fault tolerance, ensures stable network operation and link load balancing, rationally uses network channels, and improves redundant link utilization. Supports industrial-grade Ethernet rings Network protocol ERPS provides millisecond-level fast service switching performance to ensure uninterrupted services. Moreover, the protocol is simple and reliable, has high switching performance, is easy to maintain, and has flexible topology, which can greatly facilitate users to manage and plan the network;

It uses industrial-grade components, has lightning protection, overvoltage protection, surge protection design, and dual power input to ensure the normal operation of the network in adverse natural weather and unstable voltage environments;

Through a simple visual WEB interface (supports http and https protocols), various functions of the switch can be operated simply and conveniently;

Support SNMPV1/V2/V3 network management to configure and manage devices;

Supports command line configuration (CLI) and management through Telnet and console port;

Supports encryption methods such as SSH2.0, making management more secure;

Supports LLDP protocol to make network management simpler;

Supports NTP clock protocol and can automatically synchronize network time;
