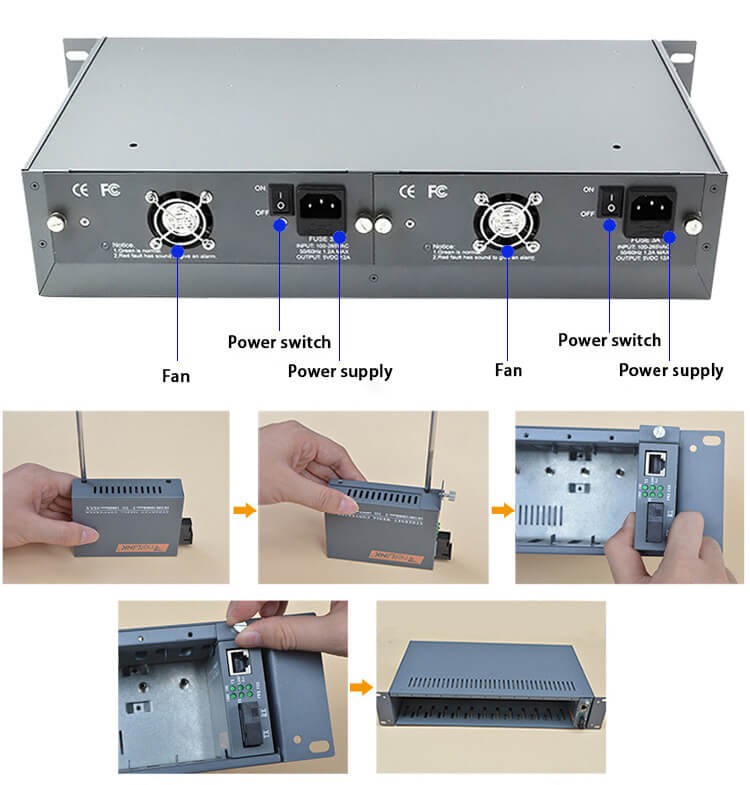

1. Hot plug-and-play
2. Dual power supply
3. Can be used in AC 220V or DC-48V
4. Mixed installation of 100M and 1000M standalone media converters
5. Maximum convenience for centralized control
6. Easy installation into cabinet with 19”2U size.

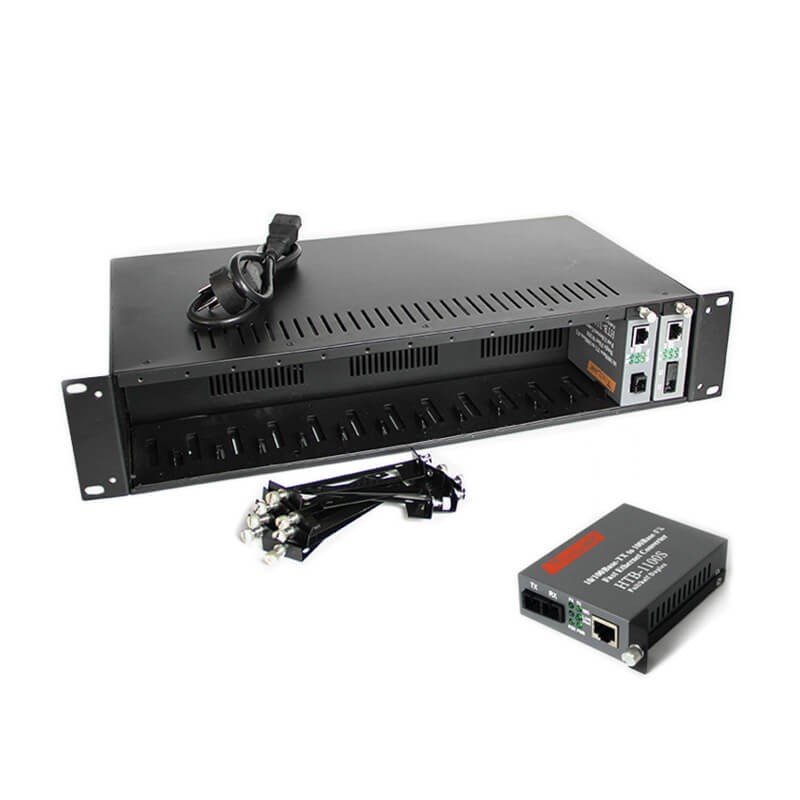

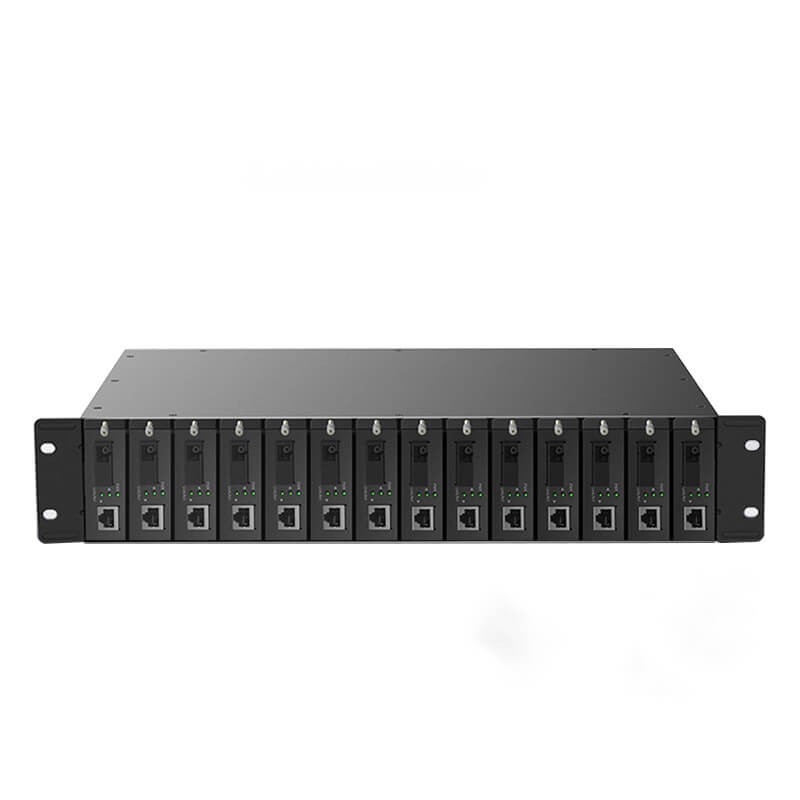

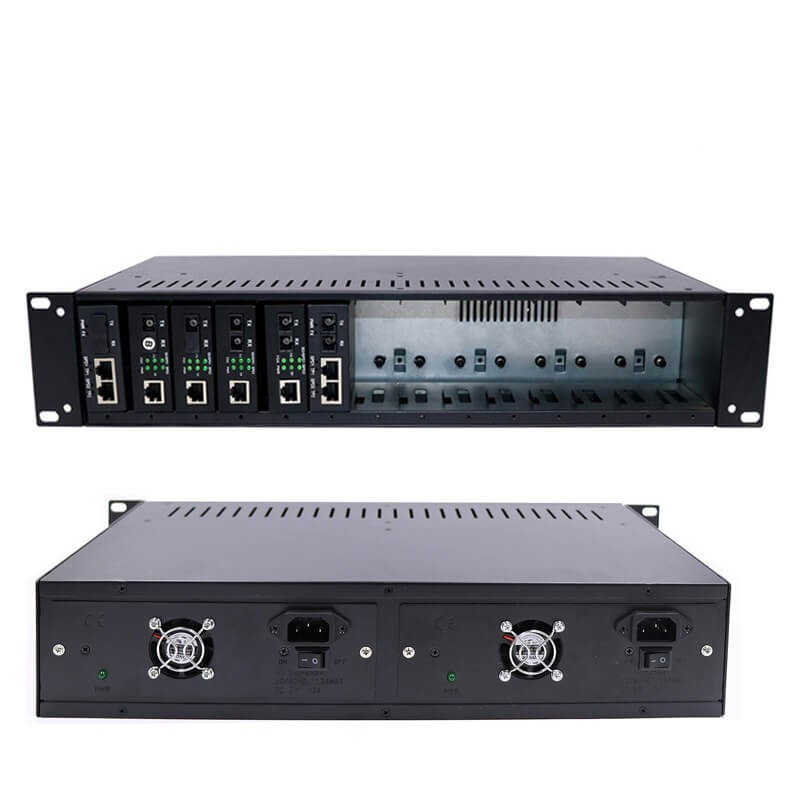

19'' 2U media converter rack is designed to concentrate 14pcs standalone media converters. The play-and-plug design provides great convenience in installation. Supports mixed installation of 100Mbps and 1000Mbps media converters.
| Slots | 14 slots |
| Compatibility | TA200 series, TA300, and TA500 standalone series，supports mixed installation |
| MTBF | 50,000 hours |
Operating Voltag | Dual power supply,220V-48V |
Operating Temperature | -10℃~+75°C |
| Storage Temperature | -45°C~+85°C |
| Humidity | 5%-90% non-condensing |
| Dimension | 480mm(L)x230mm(w)x90mm(H) |
| Weight | 5 kg/piece (Net Weight),6.28 kg/piece (Gross Weight) |
