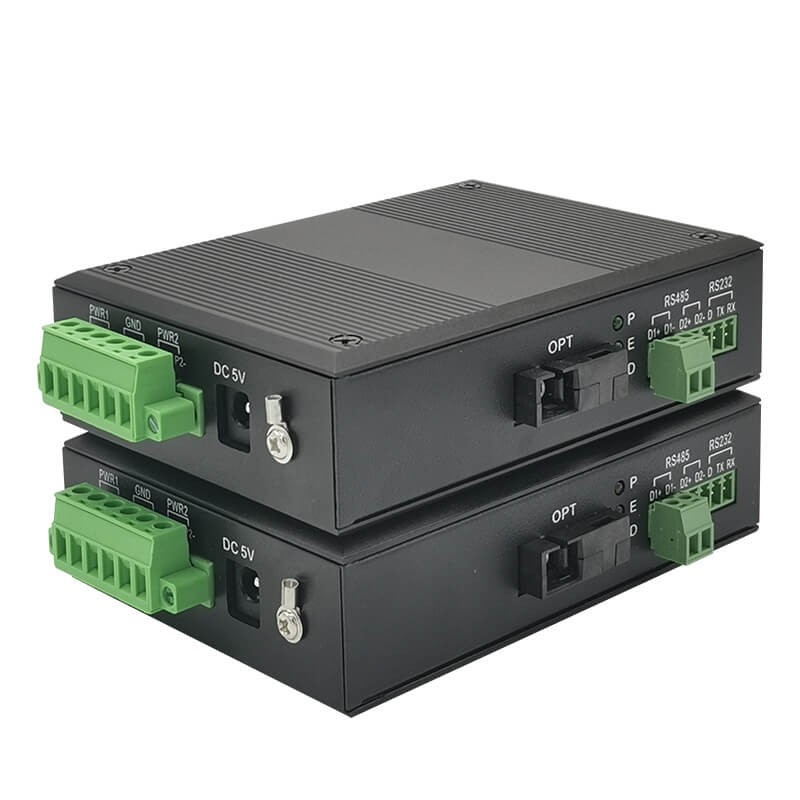

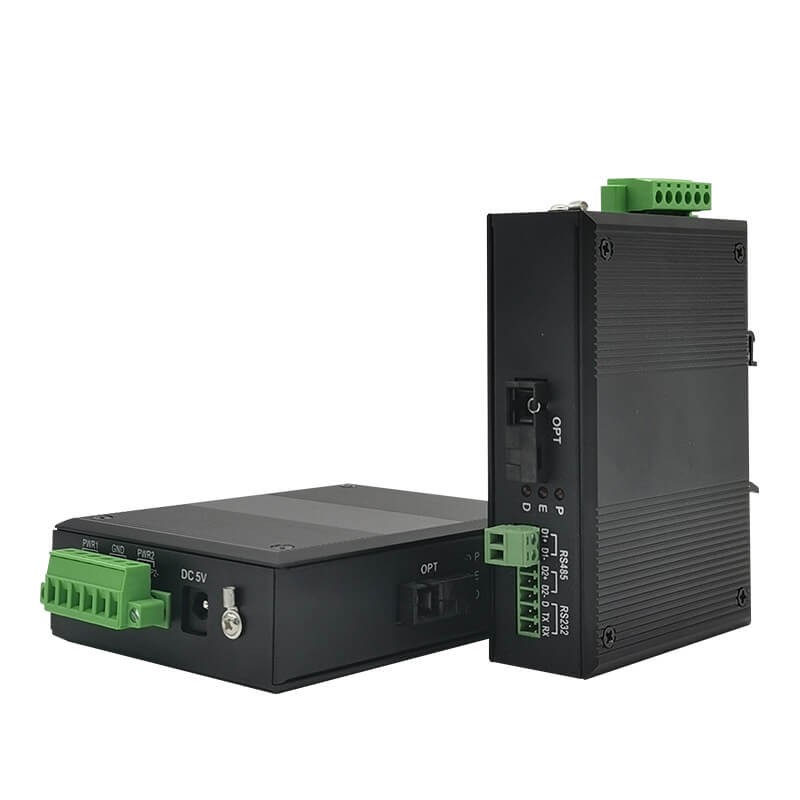

Industrail Data Fiber Optical Extender Bi-Directional RS485 Data Over Fiber Optic Converters

1. Support one way two-way half-duplex RS-485 data
2. Adaptive use for single-mode & multi-mode fiber
3. Zero delay automatically forward
4. Asynchronous transmission, point to multipoint use, RS-485 interface and fiber conversion
5. Automatically detect the serial port rate, to determine and control the direction of data transmission
6. Maximum communication rate> 155Mbps
7. 5VDC voltage input, external power supply
8. SC optical interface
9. Working wavelength: 1310nm / 1550nm
10. Standard : EIA RS-485
11. Interface to provide 1500W surge protection, 15KV electrostatic protection
12. Fiber transmission distance: multi-mode 0~ 300m, single-mode 0~20 km
13. RS485 Wire transmission distance: 1000 meters max.
14. RS-485 supports 32-point polling

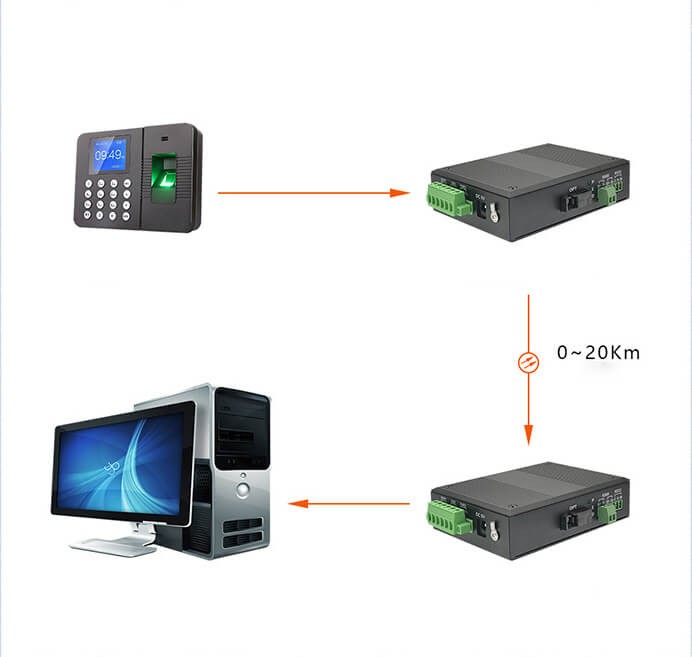

15. Applications: industrial automation and control, access control, card, parking and other systems

EMAIL


Wavelength:1310~1550nm
Rate:155Mbps
Transmit optical power:>-8db
Receiving sensitivity:>-24db Optical port: SC/FC (optional)
Standard:RS-485 standard
Physical interface:2-Pin industrial terminal block
Baud rate:50bps~256Kbps (supports non-standard baud rates)
Simultaneously using ports:2
RS485:2-wire (A/B), half-duplex, point-to-point transmission, maximum communication distance 1219m
Pull-up/pull-down resistor:1KΩ/150KΩ
Terminal resistance:N/A, 120Ω, 120KΩ
Delay:300ns
Input current:25mA~125mA
Input voltage:12V~48V
Overload current protection:Support
Power connector:3-Pin industrial terminal block
Power consumption:1.5W
Outer shell:Aluminum alloy
Product net weight:0.6Kg (pair)

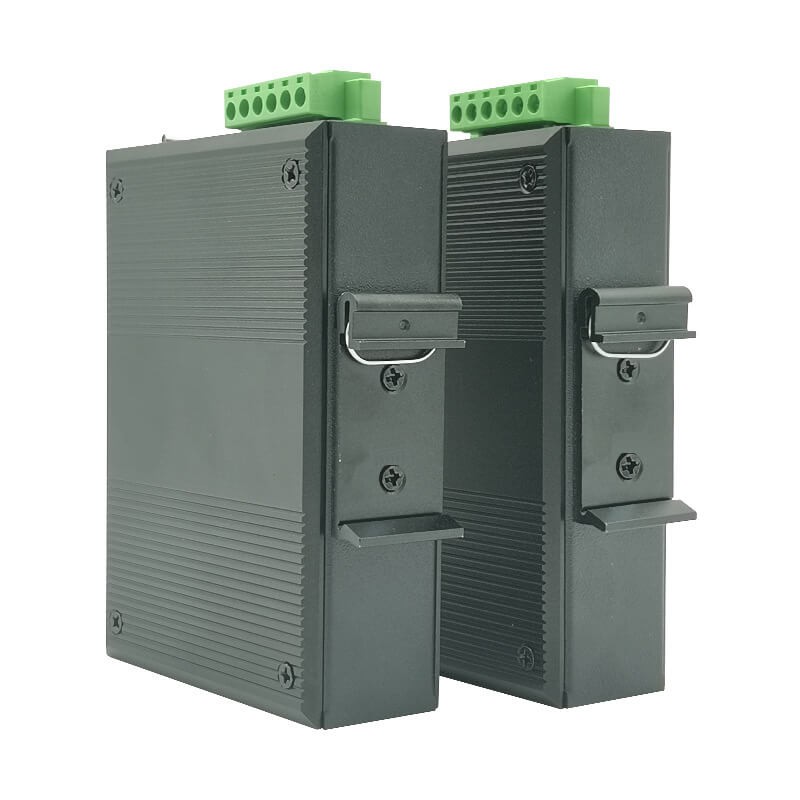

Installation:Guide rail type
Working temperature:-40℃~+85℃
Storage temperature:-40℃~+85℃
Relative humidity:5~95% (non-condensing)
Working life:>100,000 hours
